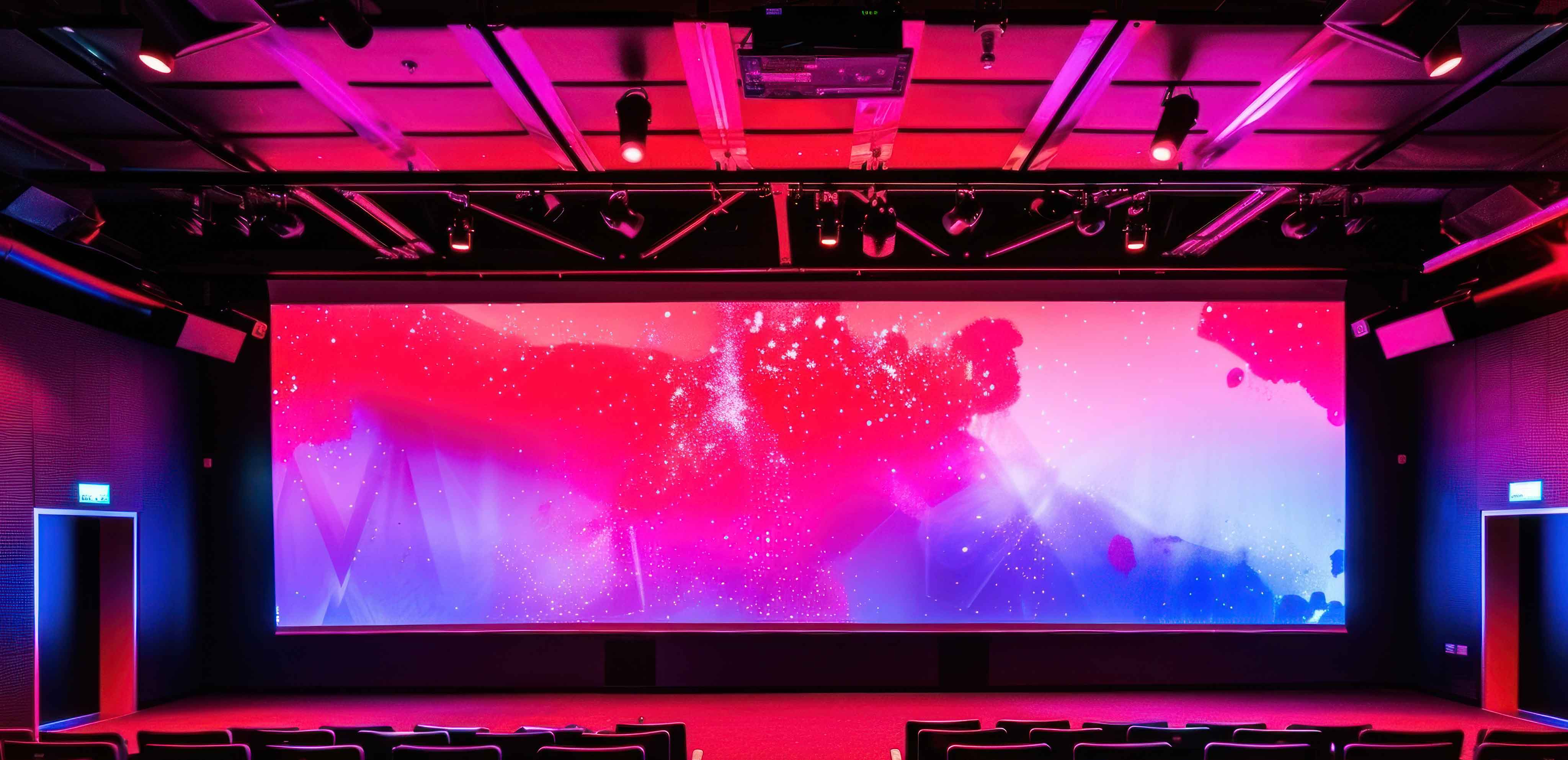

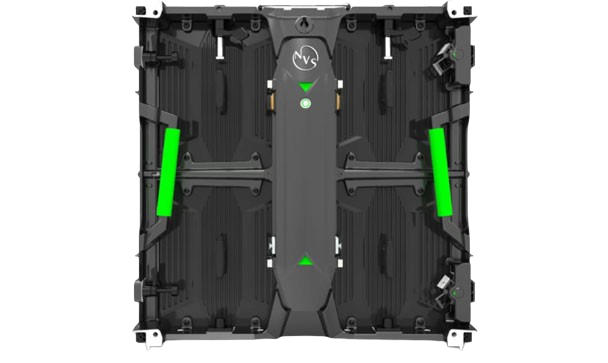

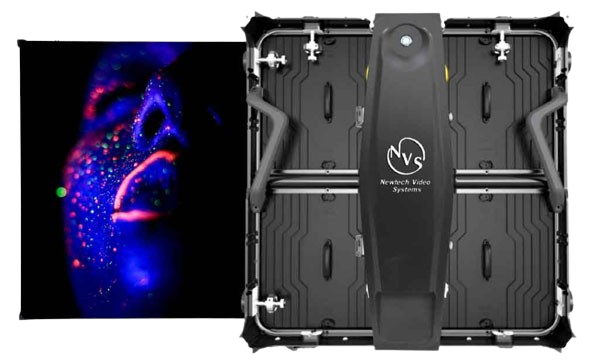

Rental Cabinet Indoor is designed for quick installation, seamless performance, and high-quality visuals in any event setting. Its lightweight structure, smart locking system, and precise panel alignment ensure fast setup and smooth operation. With sharp image clarity and reliable indoor brightness, it’s an ideal choice for concerts, exhibitions, conferences, and stage productions requiring flexible, high-performance LED displays.
Our TrueColour™ reproduction technology brings each colour to
life and delivers unmatched
vibrancy with millions of colours capturing every minute
detailing.
| Parameter | Value |
|---|---|
| Pixel Pitch | 3.6 mm |
| LED Type | 3-in-1 SMD |
| Brightness | 1200 cd/m² |
| Pixel Density | 77,100 pixels/m² |
| Pixels Per Panel | 160 × 160 pixels |
| Module Size | 288 mm × 288 mm |
| Panel Size | 576 mm × 576 mm × 80 mm |
| Weight | 8.5 kg / panel |
| Maintenance | Front / Back |
| Ingress Protection | Rear / Back IP43 |
| LED Lamp | Nationstar SMD 2020 |
| Drive IC | ICN 2153 |
| Scan Ratio | 1/16 Scan |
| Control System | NovaStar |
| Recommended Viewing | ≈ 3.6 m |
| Distance Environment | Indoor |
| Material | Die-cast Aluminum |
| LED Life Time | 100,000 Hours |
| Brightness Control | Manual / Automatic |
| Color Temperature | 2,000K – 9,500K Adjustable |
| Refresh Rate | 3840 Hz |
| Video Frame Rate | 50 & 60 Hz |
| Input Power Frequency | 50 ~ 60 Hz |
| Horizontal Viewing Angle | 140° |
| Vertical Viewing Angle | 140° |
| Contrast Ratio | 5000 : 1 |
| Input Power <Max> | 270 W / panel |
| Input Power <Typical> | 59 W / panel |
| Input Voltage | 100 ~ 240 V (50 ~ 60 Hz) |
| Processing Depth | 16 bit |
| Operating Temperature / Humidity | -10°C ~ +45°C / 10 ~ 80% RH |
| Storage Temperature / Humidity | -20°C ~ +55°C / 10 ~ 85% RH |
| Power Status | Diagnostic LEDs |
