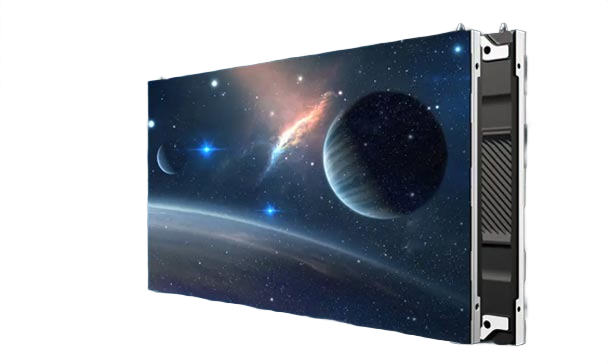

Luxe LED Display-Y delivers ultra-fine visual performance with exceptional clarity and smooth image rendering. Designed for high-end indoor environments, it offers deep contrast, lifelike colors, and seamless motion for a premium viewing experience. Its sleek, lightweight structure and wide viewing capability make it ideal for corporate spaces, control rooms, luxury interiors, and modern digital signage applications.
Our TrueColour™ reproduction technology brings each colour to
life and delivers unmatched
vibrancy with millions of colours capturing every minute
detailing.
| Parameter | P0.9 | P1.25 | P1.5 | P1.8 |
|---|---|---|---|---|
| LED Type | - | Fully flip chip COB | - | - |
| Pixel Pitch (mm) | 0.9 | 1.25 | 1.5 | 1.8 |
| Pixels Per panel | 640×360 | 480×270 | 384×216 | 320×360 |
| Pixel density(pixels/m²) | 11,37,777 | 6,40,000 | 4,39,062 | 2,84,444 |
| Panel Size (WxHxD)(mm) | 600×337.5×39.75 | 600×337.5×39.75 | 600×337.5×39.75 | 600×675×39.75 |
| Module Size (WxH)(mm) | 150×168.75 | - | - | - |
| Panel Material | Die Casting Aluminum | |||
| Panel weight (kg/panel) | 4 | - | - | 7.9 |
| Processing Depth(Bit) | 13 | |||
| Maintenance | Full Front | |||
| Refresh Rate (Hz) | 3840 Hz | |||
| Driving Type | 1/54 | 1/60 | 1/54 | 1/54 |
| Signal Transmission Distance(m) | CAT6 cable:<100 m;Single mode fiber:<10 km | |||
| Brightness (cd/m²) | 600 | |||
| Viewing Angle (°) | 0~160 | |||
| Contrast ratio | 10000:1 | |||
| AC Input Voltage(V) | AC: 100V~240V (50~60Hz) | |||
| AC Input Power Max | 75W/panel; 375W/m² | 70W/Panel; 350W/m² | - | 130W/Panel; 320W/m² |
| AC Input Power Ave | 35W/panel; 175W/m² | 30W/panel; 150W/m² | 25W/Panel; 125W/m² | 48W/Panel; 120W/m² |
| Storage Temperature (°C) | -20~60 | |||
| Operating Temperature (°C) | -10~40 | |||
| IP rating (front) | IP65 | |||
| Storage Humidity (RH) | 10%~90% non-condensing | |||
| Operating Humidity (RH) | 10%~80% non-condensing | |||
| LED Life Time(hrs) | 100000 | |||
| Panel installation | fix | |||
| Certifications | CCC/CE/CB/ETL/FCC/RoHS | |||
