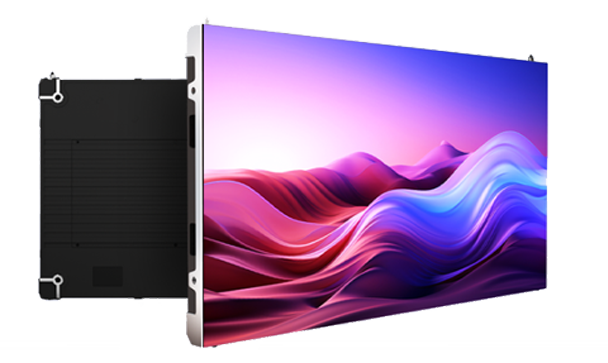

Luxe Pro Active LED is crafted for premium visual performance, delivering superior brightness, rich contrast, and ultra-smooth playback for demanding indoor environments. Its refined design, precise color reproduction, and wide viewing capability ensure stunning clarity from every angle. Built for professional applications, Luxe Pro offers a perfect blend of elegance, reliability, and cutting-edge display technology.
Our TrueColour™ reproduction technology brings each colour to
life and delivers unmatched
vibrancy with millions of colours capturing every minute
detailing.
| Product | i0.7 | i0.9 | i1.2 | i1.2 Pro |
|---|---|---|---|---|
| LED type | Flip-Chip COB | Flip-Chip COB | Flip-Chip COB | Flip-Chip COB |
| Pixel Pitch(mm) | 0.7 | 0.9 | 1.25 | 1.25 |
| Panel Material | Die-casting Aluminum | |||
| Panel Size(mm) | 600 x337.5 x 35 | |||
| Panel Resolution | 768 ×432 | 640×360 | 480×270 | 480×270 |
| FHD/2K layout | 3x3 | 3x3 | 4x4 | 4x4 |
| 4K layout | 5x5 | 6x6 | 8x8 | 8x8 |
| Panel Weight (kg) | 4.6 | |||
| Module Size （mm） | 150 x168.75 | |||
| Module Layout （W×H） | 4×2 | |||
| Module Resolution(pixels) | 192 ×216 | 160X180 | 120X135 | 120X135 |
| Brightness （nit） | 600-2000 | |||
| Refresh Rate （Hz） | 3840 | 3840 | 7680 | 7680 |
| Contrast | 20000:1 | |||
| Max power consumption (W/㎡) | 190 | 165 | 160 | 160 |
| Avg power consumption (W/㎡) | 65 | 55 | 50 | 50 |
| Drive type | Common | Cathode | - | - |
| Scan rate | 36s | 36s | 27S | 15S |
| Gray level | 16bit | |||
| IP rate | IP65/IP30 | |||
| Input power | 100~240V | |||
| Installation type | Mounting/stacking/hanging | |||
| Maintenance | Feont | |||
| Certification | CCC/CE/CB/ETL/FCC/RoHS | |||
