Controllers serve as the core processing units that manage, distribute, and optimize visual content across LED display systems. Designed for precision and stability, they ensure smooth playback, accurate color performance, and seamless synchronization between panels. Ideal for both simple setups and complex multi-screen environments, Controllers deliver reliable, high-quality display management for events, signage, and professional installations.
Our TrueColour™ reproduction technology brings each colour to
life and delivers unmatched
vibrancy with millions of colours capturing every minute
detailing.
| Parameter | Value |
|---|---|
| Physical Specifications | |
| Dimensions (H×W×D) | 178 mm × 102.5 mm × 28.5 mm |
| Weight | 380.1 g |
| Input Voltage | 5 V DC |
| Rated Power Consumption | 10 W |
| Storage Temperature | 0°C – 50°C |
| Storage Humidity | 0% RH – 80% RH |
| Operating Temperature | -40°C – 75°C |
| Operating Humidity | 0% RH – 80% RH |
| Operating Memory | 1 GB |
| Internal Storage Space | 8 GB |
| Packing Information | |
| Dimensions (H×W×D) | 335 mm × 190 mm × 62 mm |

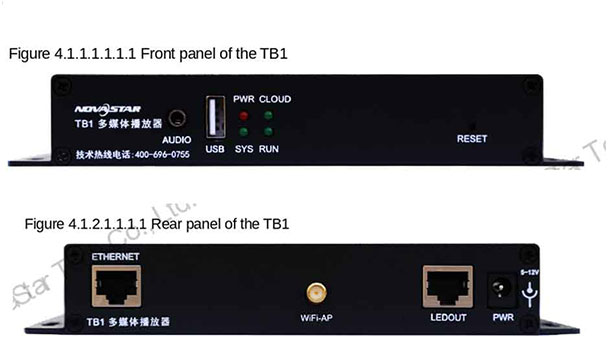

| List | • TB1 LED multimedia player ×1 • Switched-mode power supply (HXF-25W-12V) ×1 • Columned Wi-Fi omnidirectional antenna ×1 |
| Characteristics | |
| Features | • Support 650,000-pixel loading capacity (max 1920×1080). • Support Wi-Fi AP connection. • Support stereo audio output. • 1-Way USB supports USB drive importing display. • Onboard brightness sensor interface supports automatic & timing smart brightness adjustment. |
