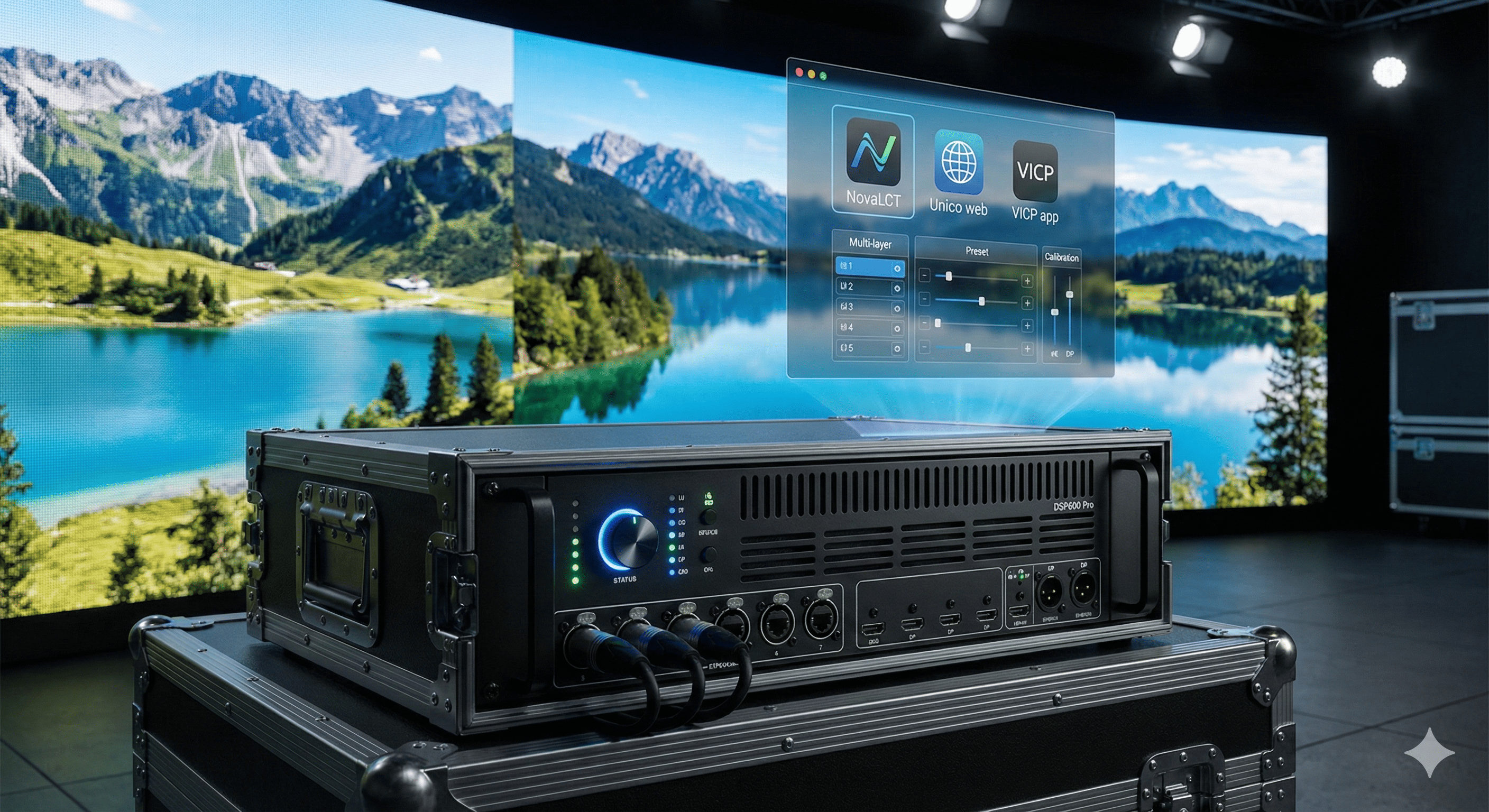

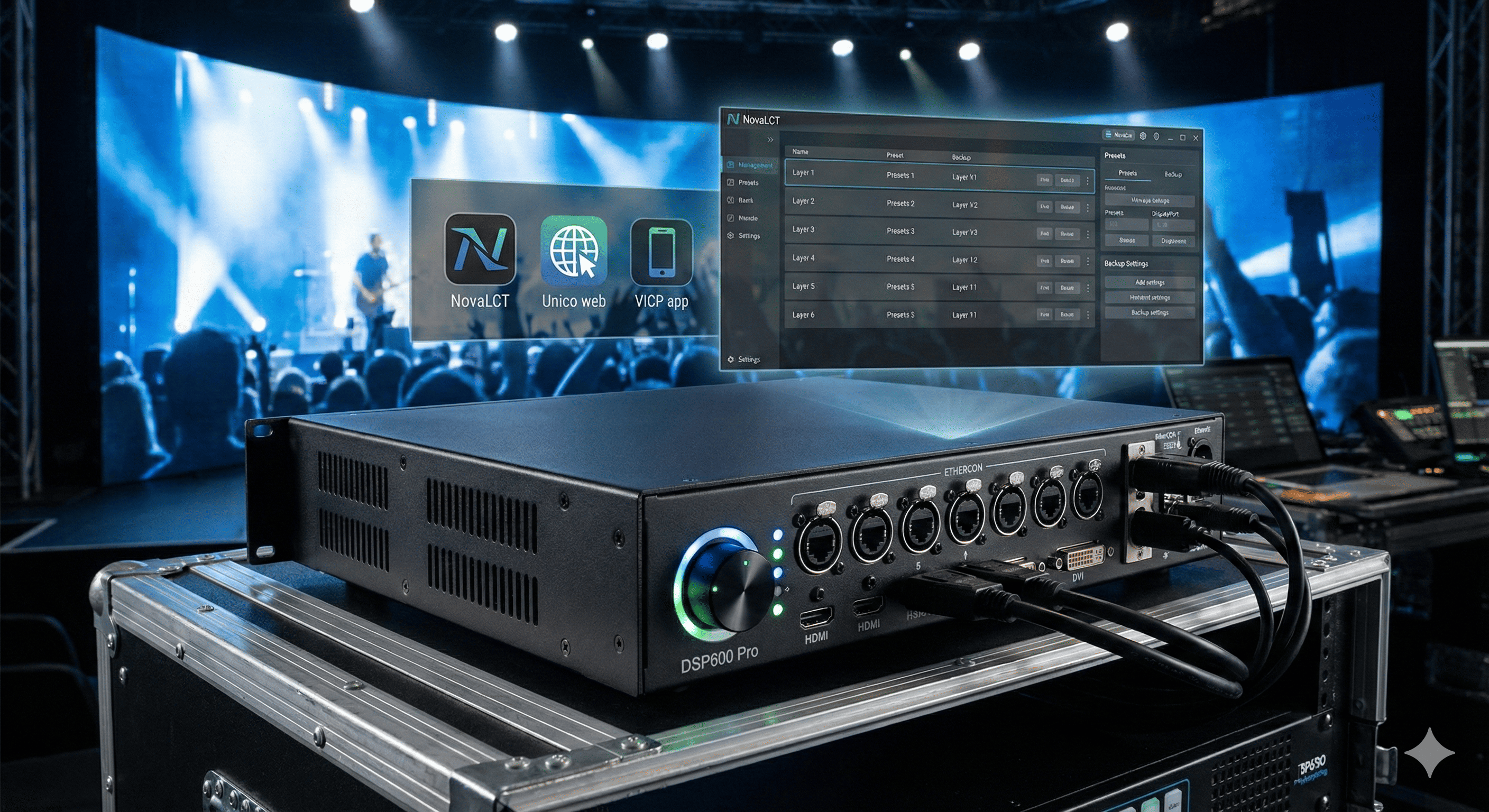

The DSP600 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 6 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 3.9 million pixels, the DSP600 Pro can output at a maximum width of 10,240 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site. The DSP600 Pro boasts powerful video signal reception and processing capabilities, supporting a maximum resolution of 4Kx2K@60Hz for video input. It can handle multiple video signal inputs and includes features like 6 layers, output scaling, low latency and pixel-level brightness and chroma calibration. These functions combine to deliver outstanding image display quality. With various control options available, the DSP600 Pro can be operated via the front panel knob, NovaLCT, Unico web page and VICP app, providing you with a convenient and effortless control experience. The DSP600 Pro is housed in an industrial-grade casing, which, combined with its powerful video processing and transmission capabilities, makes it robust and well-suited for complex operational environments. The DSP600 Pro is a perfect fit for medium and high-end rental, stage control systems and fine-pitch LED screens.
| Category | Parameter | Value |
|---|---|---|
| Electrical Parameters | Power connector | 100~240V~, 50/60Hz |
| Rated power consumption | 41 W | |
| Operating Environment | Temperature | 0°C to 50°C |
| Humidity | 5% RH to 85% RH, non-condensing | |
| Storage Environment | Temperature | −10°C to +60°C |
| Humidity | 5% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 482.6 mm × 302.2 mm × 50.1 mm |
| Net weight | 3.9 kg | |
| Total weight | 6.5 kg | |
| Packing Information | Carrying Case | 545 mm × 425 mm × 145 mm |
| Accessories | 1x Power cord, 1x Ethernet cable, 1x HDMI cable, 2x Silicone dustproof plugs, 1x USB cable, 1x Phoenix connector, 1x Quick Start Guide, 1x Certificate of Approval | |
| Packing Box | 565 mm × 450 mm × 175 mm | |
| Noise Level (typical at 25°C/77°F) | 45 dB (A) |
