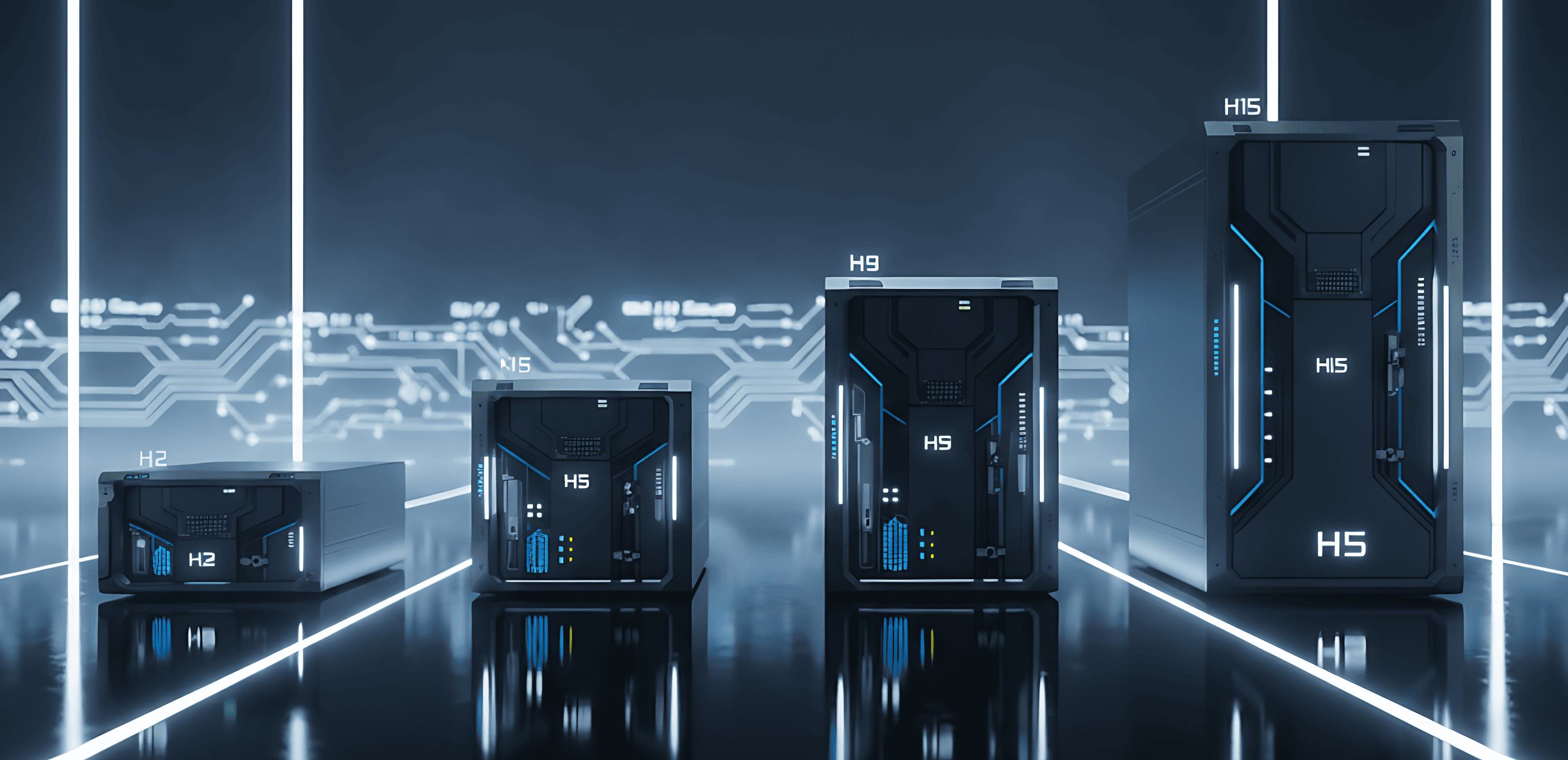

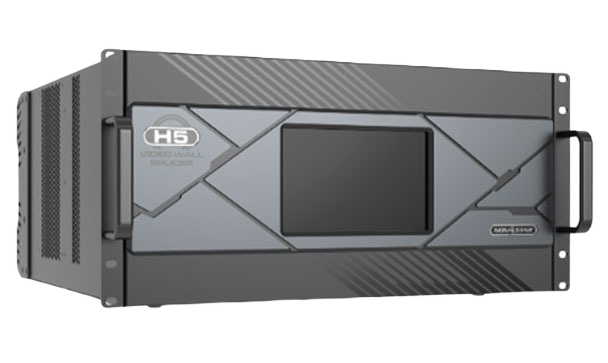

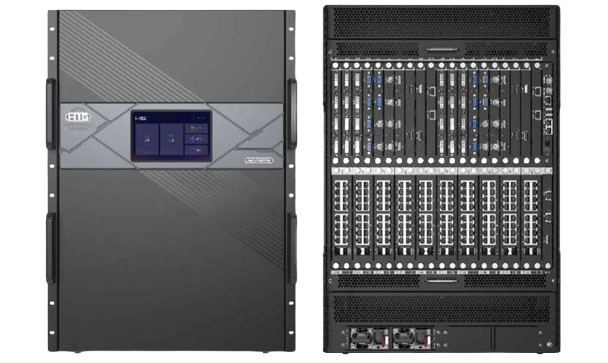

The H Series is engineered for high-performance visual clarity with a sleek, modern design. Its smooth image output, precise color accuracy, and stable operation make it ideal for professional indoor installations. LED display Built with durability and efficiency in mind, the H Series delivers consistent, premium-quality visuals for corporate spaces, control rooms, retail environments, and digital signage applications.
Our TrueColour™ reproduction technology brings each colour to
life and delivers unmatched
vibrancy with millions of colours capturing every minute
detailing.
| Parameter | H2 | H5 | H9 | H15 |
|---|---|---|---|---|
| Chassis | ||||
| Chassis Size | 2U | 5U | 9U | 15U |
| Input / Output | ||||
| Max Input Cards | 1 | 5 | 10 | 15 |
| Max Input Channels | 16 | 40 | 60 | 120 |
| Max Output Cards | 2 | 4 | 8 | 16 |
| Max Loading Capacity | 26M px | 39M px | 65M px | 130M px |
| Max Layers | 32 | 48 | 80 | 160 |
| Electrical Specifications | ||||
| Power Connector | Single | Single (Redundant Optional) | Single (Redundant Optional) | Dual (Redundant Optional) |
| Power Consumption | 210 W | 400 W | 450 W | 900 W |
| Operating Environment | ||||
| Temperature | 0°C to 45°C | |||
| Humidity | 0% to 80% RH, Non-Condensing | |||
| Storage Environment | ||||
| Temperature | -10°C to +60°C | |||
| Humidity | 0% to 85% RH, Non-Condensing | |||
| Physical Specifications | ||||
| Dimensions (W×H×D) | 482.6 × 88.1 × 252.8 mm | 482.6 × 222.8 × 252.8 mm | 482.6 × 405.8 × 533.0 mm | 482.6 × 633.0 × 533.0 mm |
| Net Weight | 15.5 kg | 26 kg | 35 kg | 48 kg |
| Gross Weight | 18 kg | 29 kg | 49 kg | 75.5 kg |
| Packing Box | 660×570×210 mm | – | 780×590 mm | 775×675×845 mm |
| Accessories | ||||
| Included | 1× Power Cord, 1× RJ45 Cable, 1× Grounding Cable, Quick Start Guide, Certificate of Approval, Safety Manual, Custom Letter |
|||
| Certifications | ||||
| CCC | Certified | |||
